Insect Protection Technologies for Corn Rootworm Management

Something went wrong. Please try again later...

Objective

  • Research trials were conducted in 2013, 2014, and 2015 to evaluate corn rootworm protection efficacy of insect protection technologies available in Pioneer® brand corn products under various levels of corn rootworm feeding pressure.

Study Description

Years 2013,2014,2015
9 in 2013
  11 in 2014
  15 in 2015
Locations:   Research locations in Iowa, Ill., Ind., Minn., Neb., S. D., and Wis.
Plot Layout: Small research plots, 4 rows each
Replications: 3 per location
Hybrid Platforms: 4 or 5 per location
Insect Protection Technologies – Pioneer brand products:
Qrome® products
Optimum® AcreMax® XTreme (AMXT)
Optimum® AcreMax® Xtra (AMX)
Optimum® AcreMax® TRIsect® (AMT) with Poncho® 1250 + VOTiVO<>® insecticide
Corn rootworm non-protected check (HX1, LL, RR2)
  • Evaluated corn rootworm feeding damage on 5 plants per plot
  • Samples did not exclude refuge plants
  • Corn rootworm feeding damage rated using the Iowa State 0-3 node injury score (Oleson et al., 2005)
  • Research locations were selected and managed specifically to create high corn rootworm pressure environments, with some sites utilizing trap crops and/or manual corn rootworm infestations

Site Characterization

  • Research locations were categorized as having low, moderate or high corn rootworm feeding pressure based on the average corn rootworm node injury in the corn rootworm non-protected check:



Low: 0 - 0.75
Moderate: 0.75 - 1.75
High: 1.75 - 3.00

Results

  • Across all 3 years of the study, a total of 14 locations had moderate to high corn rootworm pressure (0.75 - 3.00) The average corn rootworm node injury score of the corn rootworm non-protected check was 1.77 across these 14 locations (Figure 1).

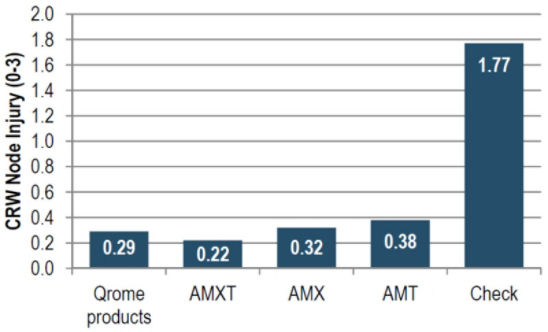

Average CRW node injury by insect protection.

Figure 1. Average corn rootworm (CRW) node injury by insect protection technology at moderate and high CRW pressure locations, 2013-2015. N = 14 locations with ~1,000 observations/treatment.

  • All corn rootworm protection technologies had excellent corn rootworm protection efficacy, with average corn rootworm node injury scores significantly lower than the non-protected check, ranging from 0.22 to 0.38.

Reference

  • Oleson, J.D., Y. Park, T.M. Nowatzki, and J.J. Tollefson. 2005. Node-injury scale to evaluate root injury by corn rootworms (Coleoptera: Chrysomelidae) J. Econ Entomol. 98(1): 1-8).

See your local Pioneer sales representative to better understand which products make sense on your farm.

A decrease of susceptibility to certain technology traits in corn has been observed in some corn rootworm populations, which may result in lower efficacy than depicted in this chart. Please contact your authorized Pioneer sales representative or consult with your local University Extension for more information regarding insect resistance management guidelines, best management practices, and to understand whether there has been insect resistance documented in your area.

Authors: Murt McLeod, Steven Paszkiewicz, and Mark Jeschke
